最大电流范围:600Volts
最大温度: 75 ‘C
材质：铜和PVC
镀锡
| 导线截面0.5～1.5mm2 (AWG 22-16) 最大电流/最大=19A | ||||||||

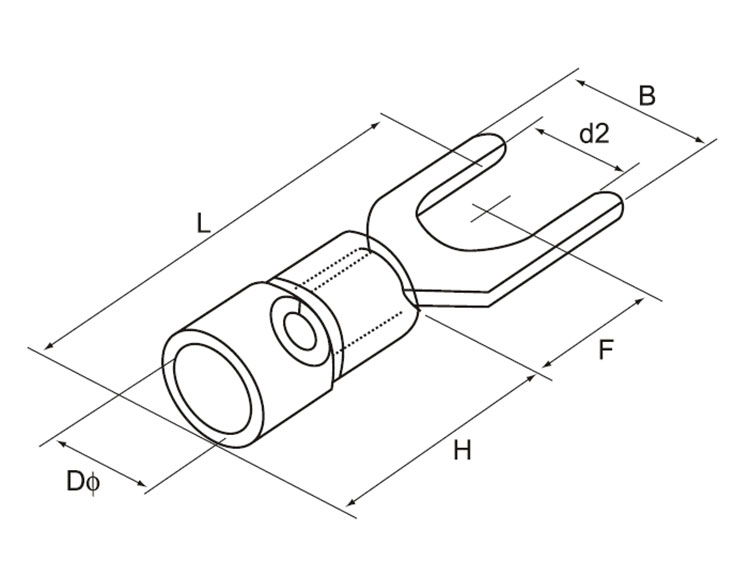

| 型号 | 美制 | 螺栓口直径 d2 | 尺寸 | 颜色 | ||||
| 螺栓号 | B(mm) | L(mm) | F(mm) | H(mm) | D Ф(mm) | |||
| SV1.25-3 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10 | 4.3 | Red |
| SVS1.25-3.5 | #6 | 3.7mm | 5.7 | 21.2 | 6.5 | |||
| SVL1.25-3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 | |||
| SVS1.25-4 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 | |||
| SVM1.25-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | |||
| SVL1.25-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | |||
| SVS1.25-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | |||
| SVL1.25-5 | #10 | 5.3mm | 9.5 | 21.2 | 6.5 | |||
| SVS1.25-6 | 1/4 | 6.5mm | 9.5 | 21.2 | 6.5 | |||
| SVL1.25-6 | 1/4 | 6.5mm | 12 | 27.2 | 11 | |||
| Wire Range 1.5～2.5mm2(AWG 16-14) Imax=27A | ||||||||
| 型号 | US SYSTEM | d2 | 尺寸 | 颜色 | ||||
| OF BOLTS | B(mm) | L(mm) | F(mm) | H(mm) | D Ф(mm) | |||
| SV2-3 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10 | 4.9 | blue |
| SVS2-3.5 | #6 | 3.7mm | 5.7 | 21.2 | 6.5 | |||
| SVL2-3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 | |||
| SVS2-4 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 | |||
| SVM2-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 | |||
| SVL2-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 | |||
| SVS2-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 | |||
| SVL2-5 | #10 | 5.3mm | 9.5 | 21.2 | 6.5 | |||
| SVS2-6 | 1/4 | 6.5mm | 9.5 | 21.2 | 6.5 | |||
| SVL2-6 | 1/4 | 6.5mm | 12 | 21.2 | 11 | |||
| Wire Range 2.5～4mm2 (AWG 14-12) Imax=37A | ||||||||
| 型号 | US SYSTEM | d2 | 尺寸 | 颜色 | ||||
| OF BOLTS | B(mm) | L(mm) | F(mm) | H(mm) | D Ф(mm) | |||
| SV3.5-4 | #8 | 4.3mm | 8 | 24.8 | 7 | 12.5 | 6.2 | black |
| SV3.5-5 | #10 | 5.3mm | 8 | 24.8 | 7 | |||
| SV3.5-6 | 1/4 | 6.5mm | 12 | 28 | 12.1 | |||
| Wire Range 4～6mm2(AWG 12-10) Imax=48A | ||||||||
| 型号 | US SYSTEM | d2 | 尺寸 | 颜色 | ||||
| OF BOLTS | B(mm) | L(mm) | F(mm) | H(mm) | D Ф(mm) | |||
| SV5.5-3.5 | #6 | 3.7mm | 8.3 | 25.2 | 7.5 | 12.5 | 6.7 | yellow |
| SVS5.5-4 | #8 | 4.3mm | 8.3 | 25.2 | 7.5 | |||
| SVL5.5-4 | #8 | 4.3mm | 9 | 23.9 | 7.5 | |||
| SV5.5-5 | #10 | 5.3mm | 9 | 23.9 | 7.5 | |||
| SVS5.5-6 | 1/4 | 6.5mm | 9 | 23.9 | 7.5 | |||
| SVL5.5-6 | 1/4 | 6.5mm | 12 | 31.2 | 12 | |||
| SV5.5-8 | 5/16 | 8.4mm | 14 | 30 | 11.5 | |||
